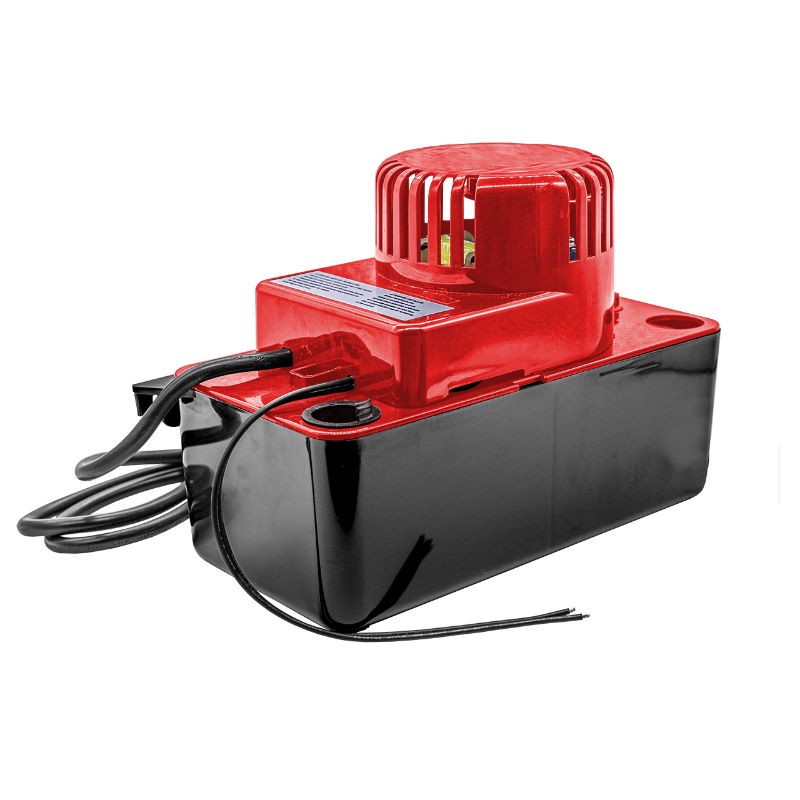

Rectorseal Tank Pump 24' 230V

Part No. REC83888

Quick Overview

Rectorseal Condensate Removal Pump
Only 0 left

Availability: In stock

$0.00
OR

The RTP (RectorSeal Tank Pump) series is designed as an automatic condensate removal pump for heating and air conditioning systems. The pump is controlled by a float switch mechanism which turns the pump on when approximately 2¼" of water collects in the tank, and automatically switches off when the tank drains to approximately 1¼".

Features & Benefits

  • 1/2 gallon (1.9 litre) high impact ABS tank for durability
  • Float arm design for reliable operation
  • 3 inlet drain holes for easy drain hose access
  • Compact design for easy installation
  • 6 foot power cord to easily position pump
  • 10 inch wires to connect pump to furnace or air handler for system shutoff capability
  • Thermal overload protection
  • Removable 3/8" check valve
  • 3-year limited warranty

Applications

  • Serves as an automatic condensate removal pump for air conditioning & furnace condensate
  • Controlled by a float switch mechanism, which activates the pump when 2¼" of condensate is detected and shuts off when condensate drops below 1¼"
  • Provides an economical condensate solution, with appropriate durability and reliability

Litres per Hour @ Height

  • 580 lph @ .3m
  • 520 lph @ 1.5m
  • 470 lph @ 2.7m
  • Shutoff: 7.3m

Additional Information

Part No. REC83888
Manufacturer RECTORSEAL
Unit Of Measure Each
Width (mm) 790
Depth (mm) 320
Height (mm) 400
