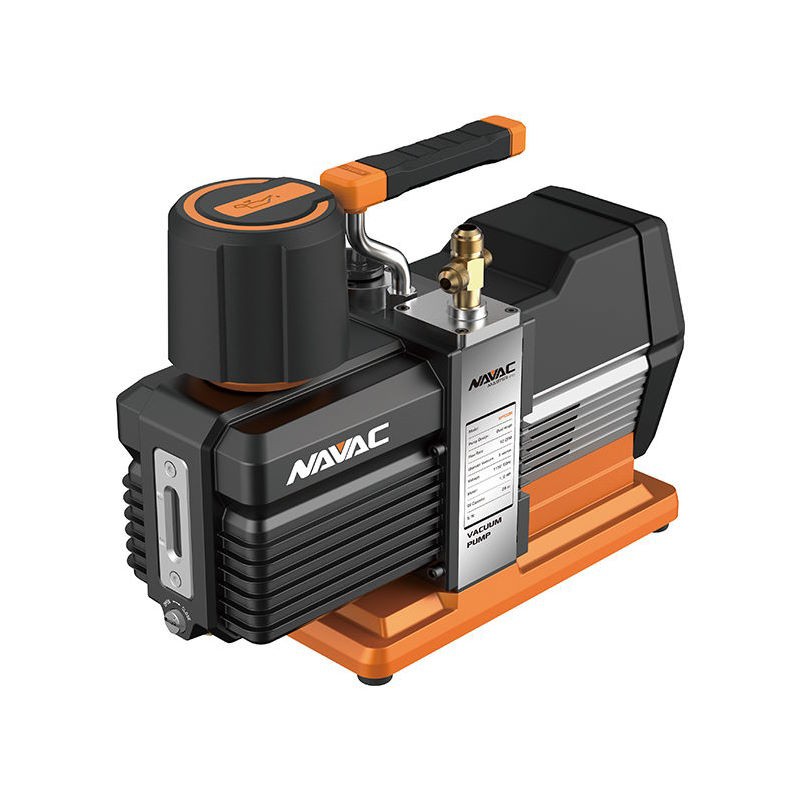

Navtek Vacuum Pump 230V (NP12DM)

Part No. REC13084

Quick Overview

Vacuum Pump 230V
Only 0 left

Availability: In stock


NP12DM solves the problems of long-time evacuation, inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The dual stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Integrate pump structure and built-in oil back-flow prevention assure superior performance and reliability.

Features & Benefits

  • Dual-Voltage
  • Twin Cylinder
  • Oil Back Flow Prevention
  • Lifting Hook
  • Integrated Cylinder Structure


  • Run Load Amps: 7.9 amps
  • Pump Design: Dual stage
  • Motor Power: 1/2 HP

Additional Information

Part No. REC13084
Manufacturer RECTORSEAL
Unit Of Measure Each
Flow Rate (cfm) 12
Ultimate Vacuum 5 microns
Oil Capacity (oz) 28
Inlet Port 1/4", 3/8", 1/2" Flare
Power Supply 230V/60Hz
Dimensions (mm) 414 x 152 x 307
Weight (kg) 14.5
