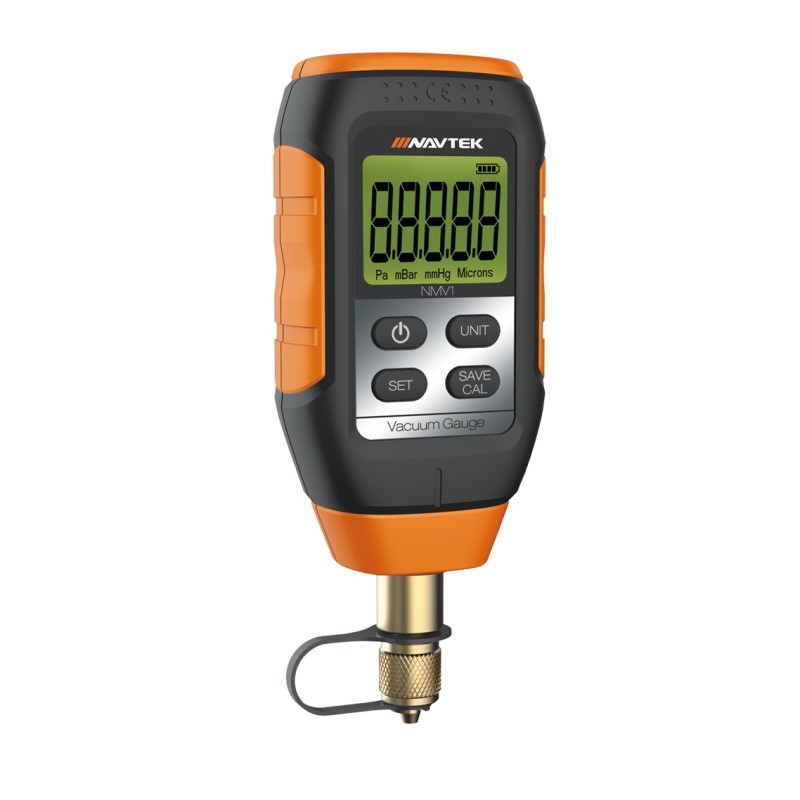

Navtek Micron Vacuum Gauge

Part No. REC13068

Quick Overview

Micron Vacuum Gauge (NMV1)
Only 0 left

Availability: In stock


It uses the Pirani high-precision vacuum sensor to precisely measure vacuum levels. Digital display affords a comprehensive view of vacuum conditions. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level decreases from the preset vacuum level, it will buzz rapidly and flash the backlit to warn of leaks.

Features & Benefits

  • Pirani Vacuum Sensor
  • Large Backlit Display
  • Ergonomic Design
  • Buzzing Alert


  • Maximum overload pressure: 72 psi
  • Range: 0~10000 Pa, 0~100 mBar, 0~75 mmHg, 0~75000 microns
  • Resolution: 0.01 (10Pa), 0.0001 (10mBar), 0.0001 (10mmHg), 1 (30000microns)
  • Accuracy: 15-750 micron: ±5% of reading(at 68°F)
  • Operating temperature: 32~122°F (0~50°C)
  • Unit: Pa, mBar, mmHg, Microns
  • Sensor: Pirani sensor
  • Buzzer alarm: 90 db, shut down after 10 seconds

Additional Information

Part No. REC13068
Manufacturer RECTORSEAL
Unit Of Measure Each
Weight (g) 720
