Details
• Duct size: 150mm
• Duct length: 5m
• Fan performance: 305m3/hr (84 Litres/sec) free-air performance
• Max air pressure: 90 Pa
• Sound Level: 38 dB(A) at 3m
• Max operating temperature: 45oC
• Electrical: 220~240VAC 22W
• Complies to AS/NZS 60335.2.80:2004+A1 & AS/NZS 60335.1:2011+A1
• Approval No: TUV020867EA
• Rating: IP24
• Wiring Method: Lead & plug is fitted to the fan
• Made from ABS Thermoplastic
• Duct length: 5m
• Fan performance: 305m3/hr (84 Litres/sec) free-air performance
• Max air pressure: 90 Pa
• Sound Level: 38 dB(A) at 3m
• Max operating temperature: 45oC
• Electrical: 220~240VAC 22W
• Complies to AS/NZS 60335.2.80:2004+A1 & AS/NZS 60335.1:2011+A1
• Approval No: TUV020867EA
• Rating: IP24
• Wiring Method: Lead & plug is fitted to the fan
• Made from ABS Thermoplastic
Additional Information
| Part No. | BLADUCTOKIT |
|---|---|
| Manufacturer | BLAUBERG |
| Duct Size (mm) | 150 |
| Extract Capacity (m3/h) | 305 |
| Noise Level (dBA) | 38 |
| Power (watts) | 22 |

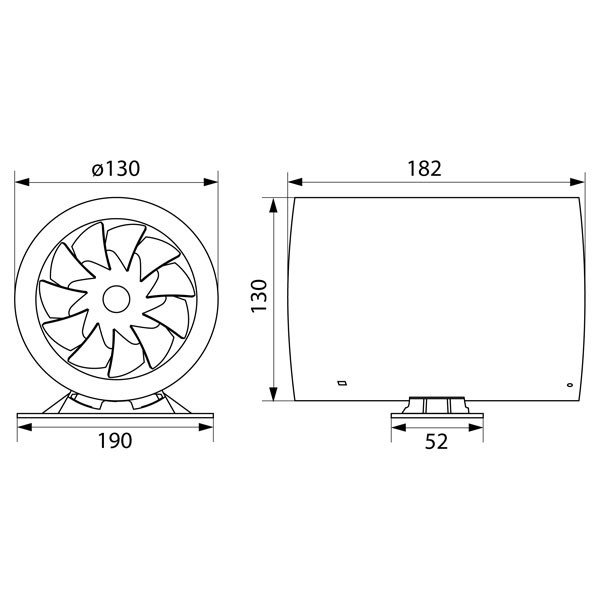

| Width (mm) | 190 |
| Height (mm) | 130 |
| Depth (mm) | 182 |
| Material | ABS Thermoplastic |
| Warranty (Years) | 5 Year replacement warranty |
