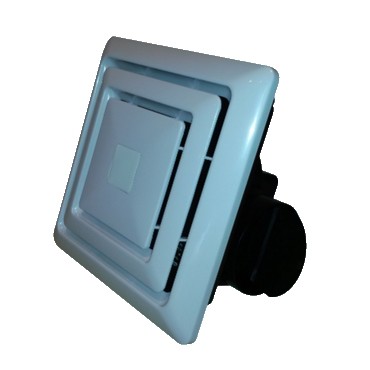

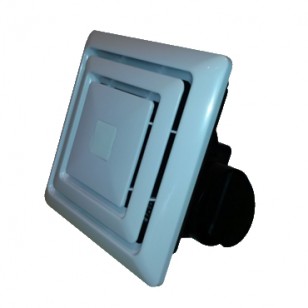

AW 908 Header Box Fan Fire Rated - 100mm Side Discharge

Part No. AIRAW908FD

Quick Overview

• 100mm duct ceiling mounted centrifugal side discharge fan
• Fire rated
• Back draft damper
• Easy fit mounting clips

Only 0 left

Availability: Out of stock

$0.00

Details

Application:

The Airware AW 908 fire rated header box fan is designed for contractors and developers who require a quality header box fan that needs to penetrate through a fire rated ceiling good fan performance and fast efficient installation times.

The AW 908 fire rated header box fan comes with the fire damper fitted and will offer up to a 90 minute fire integrity rating. A clip mounted grille for a fast installation and tight secure fit to the ceiling.

The main application for this fan is the extraction of air from bathrooms, kitchens, ensuites, toilets, laundries, apartments etc, where a fan penetration is required through a fire rated ceiling.

Design:

Centrifugal side discharge fan, low noise and back draft damper made from high quality ABS plastic housing with an injection moulded plastic ceiling white grille.

Motor:

240V single phase at 50Hz. All motors have a sealed NSK ball bearing motor with a service life of up to 20 000 hours and come with a thermal overload fuse that cannot be reset.

Wiring:

1.0m 2 pin plug.

Warranty:

1 year



• Ceiling mounted side discharge centrifugal fan
• Fire rated intumescent damper giving up to 90 minutes fire integrity rating
• 1.0m power cord
• NSK sealed ball bearing motor
• Application: Kitchens / Bathrooms / laundries / Ensuites / Toilets/ Apartments

Additional Information

Part No. AIRAW908FD
Manufacturer AIRWARE
Duct Size (mm) 100
Extract Capacity (m3/h) 151
Noise Level (dBA) 40
Power (watts) 30
RPM 2050
Width (mm) 245
Height (mm) 245
Depth (mm) 165
Material ABS Plastic
Warranty (Years) 1
