Details
Application:

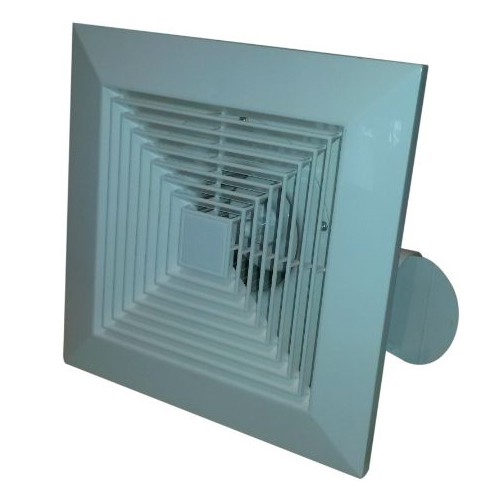

The Airware AW BUDGET header box fan is designed for contractors and developers who are looking for a quality header box fan but are not concerned over the installation time. The main differences between the AW BUDGET series and the AW 907/08 fans is there are no quick install mounting clips and they come with a sprung loaded grille. Both of these add to additional installation time compared to the AW907/08 models.
The main application for this fan is the extraction of air from bathrooms, kitchens, ensuites, toilets, laundries, apartments etc.
Design:
Centrifugal side discharge fan, low noise and back draft damper made from high quality ABS plastic housing and injection moulded plastic ceiling white grille.
Motor:
240V single phase at 50Hz. All motors have a sealed NSK ball bearing motor with a service life of up to 20 000 hours and come with a thermal overload fuse that cannot be reset.
Wiring:
1.0m 2 pin plug.
Warranty:
1 year
• Ceiling mounted side discharge centrifugal fan
• 1.0m power cord
• NSK sealed ball bearing motor
• Application: Kitchens / Bathrooms / laundries / Ensuites / Toilets/ Apartments
Additional Information
| Part No. | AIRAW-BUDGET |
|---|---|
| Duct Size (mm) | 100 |
| Extract Capacity (m3/h) | 151 |
| Noise Level (dBA) | 40 |
| Power (watts) | 24 |
| RPM | 2050 |
| Width (mm) | 245 |
| Height (mm) | 245 |
| Depth (mm) | 165 |
| Material | ABS Plastic |
| Warranty (Years) | 1 Year |
